Volkswagen 1303 1.2, 1972
| Manufacturer | Volkswagen |
| Model | 1303 1.2 |
| Year of production | 1972 |
| Start of production | 1972 |
| End of production | 1975 |
| Body type |
tudor |
| Number of doors | 2 |
| Number of seats | 5 |
| Engine position |
rear |
| Drive wheel |
rear |
| Fuel |
petrol |
| Number of cylinders |
inline 4 |
| Cooling |
air |
| Capacity | 1192 ccm, 72.4 cu-in |
| Bore | 77.0 mm, 3.031 in |
| Stroke | 64.0 mm, 2.52 in |
| Compression ratio | 7.5:1 |
| Valve Gear |
OHV |
| Valves per cylinder | 2 |
| Fuel system |
carburator, 1 x Solex |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
25 / 34 / 34 at 3600 rpm |
| Max torque [Nm / ft-lb] |
75 / 55 at 2000 rpm |
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 2420 mm, 95.3 in |
| Front track | 1394 mm, 54.9 in |
| Rear track | 1349 mm, 53.1 in |
| Length | 4110 mm, 161.8 in |
| Width | 1585 mm, 62.4 in |
| Height | 1500 mm, 59.1 in |
| Weight | 870 kg, 1918 lb |
| Maximum speed |
115 km/h, 71 mph |
| 0-100 km/h | 32.0 s |
| Standing km | |

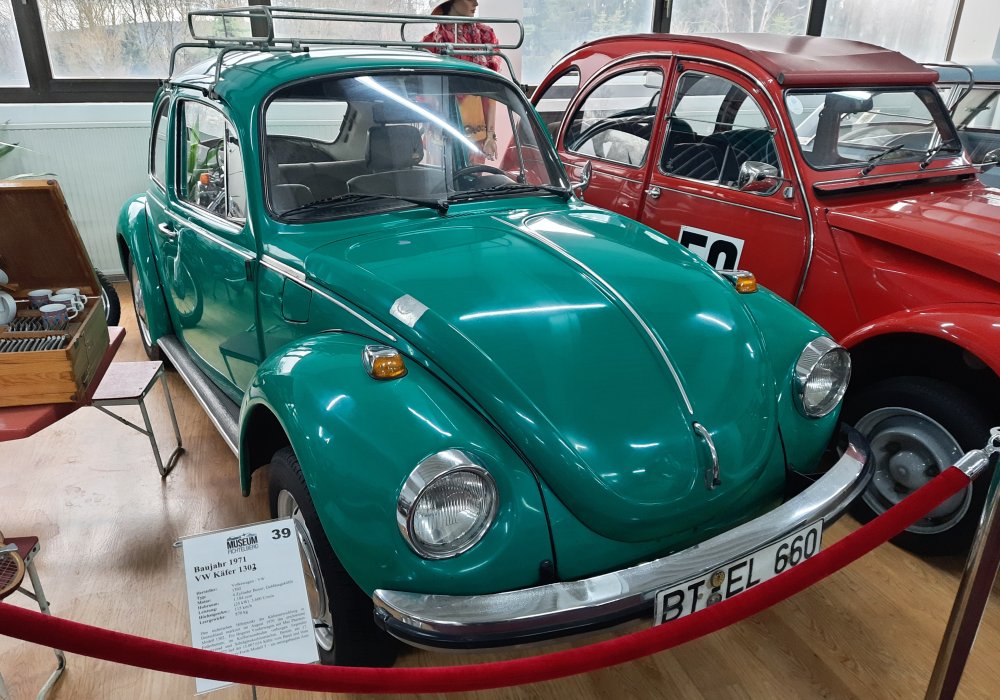

| Foto: Z.Patera Auta5P, Museum Fichtelberg 2024 |
|
|
