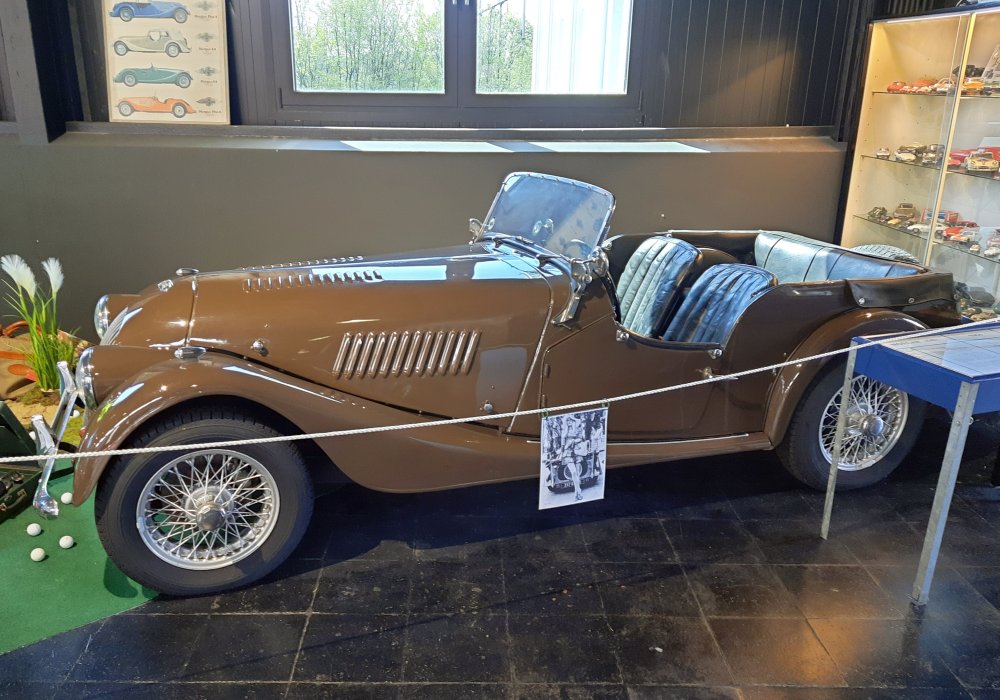

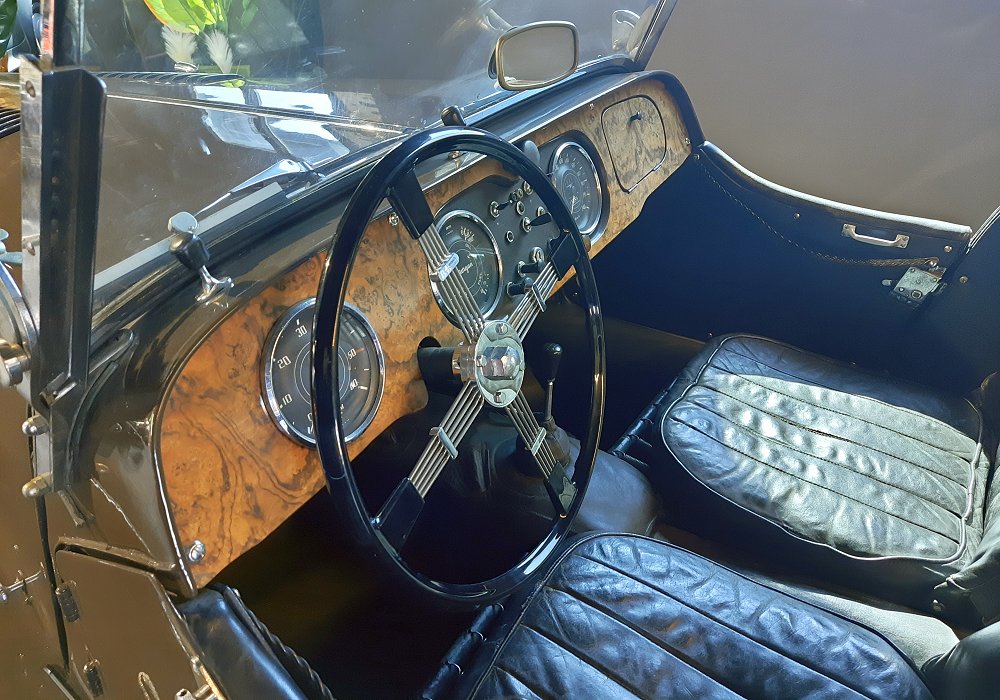

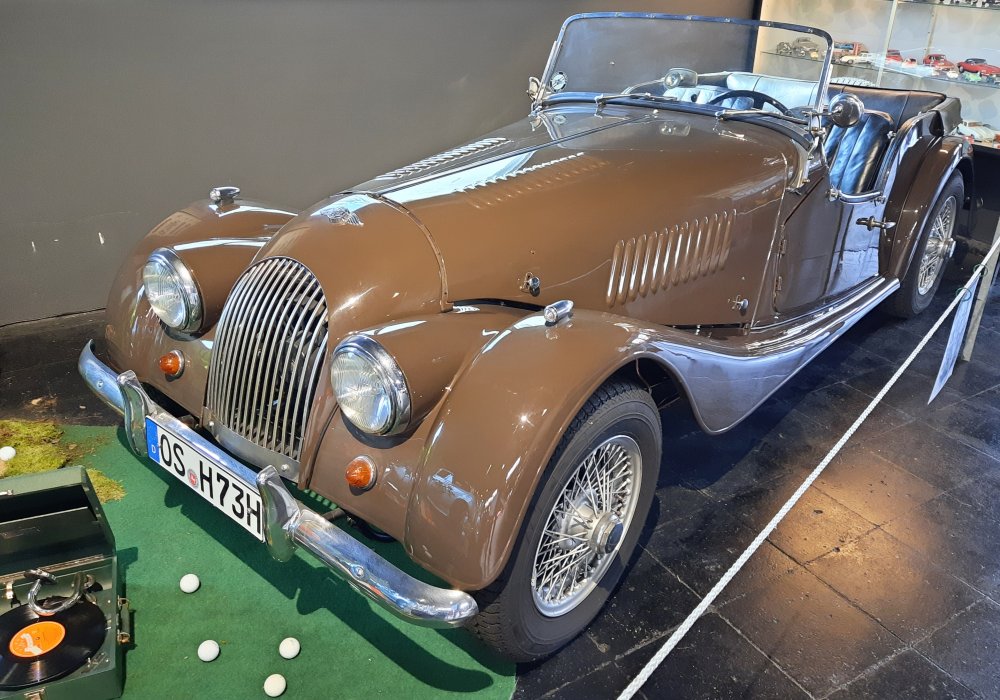

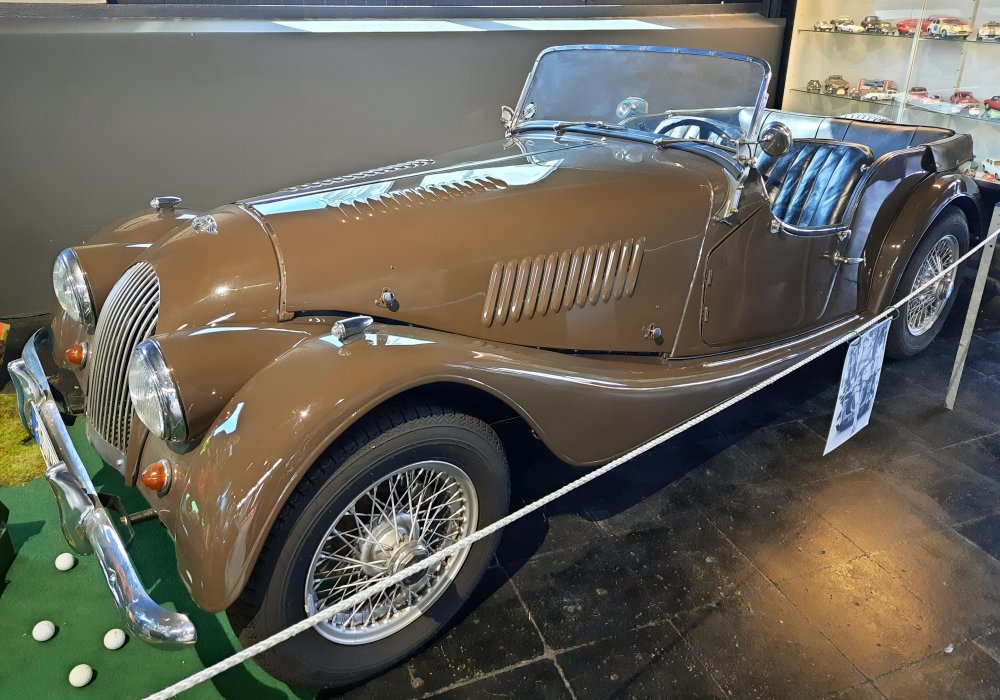

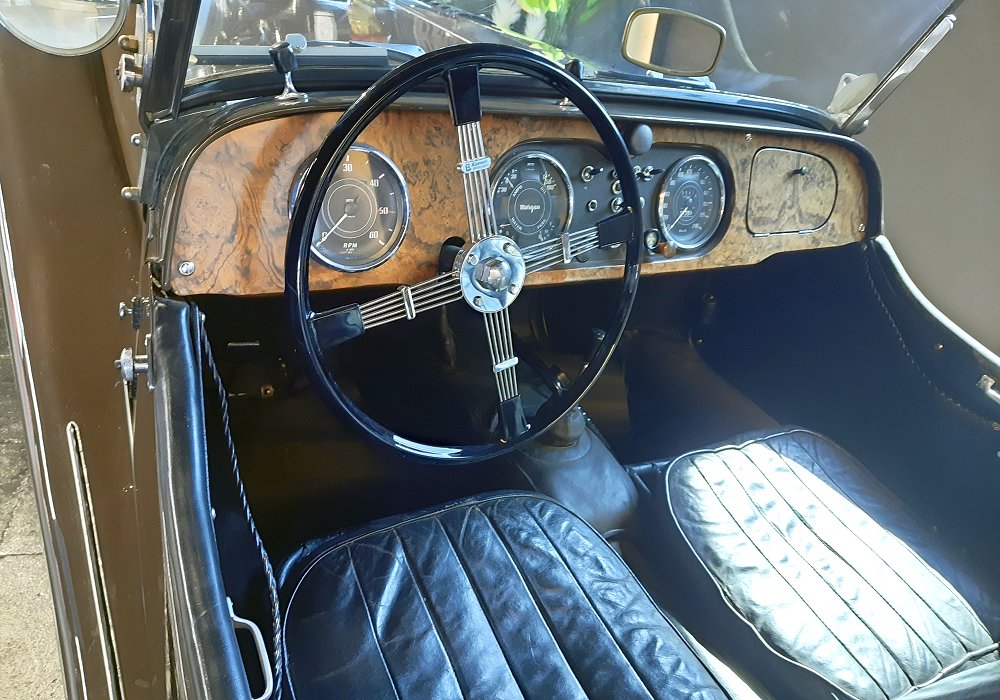

Morgan Plus 4 Tourer, 1968
| Manufacturer | Morgan |
| Model | Plus 4 Tourer |
| Year of production | 1968 |
| Start of production | 1962 |
| End of production | 1969 |
| Body type |
cabrio, convertible |
| Number of doors | 2 |
| Number of seats | 4 |
| Engine position |
front |
| Drive wheel |
rear |
| Fuel |
petrol |
| Number of cylinders |
inline 4 |
| Cooling |
liquid |
| Capacity | 2138 ccm, 129.9 cu-in |
| Bore | 86.0 mm, 3.386 in |
| Stroke | 92.0 mm, 3.622 in |
| Compression ratio | 9.0:1 |
| Valve Gear |
OHV |
| Valves per cylinder | 2 |
| Fuel system |
carburator, 2 x Stromberg |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
78 / 106 / 105 at 4750 rpm |
| Max torque [Nm / ft-lb] |
174 / 128 at 3350 rpm |
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 2438 mm, 96 in |
| Front track | 1194 mm, 47 in |
| Rear track | 1240 mm, 48.8 in |
| Length | 3658 mm, 144 in |
| Width | 1422 mm, 56 in |
| Height | 1346 mm, 53 in |
| Weight | 865 kg, 1907 lb |
| Maximum speed |
175 km/h, 109 mph |
| 0-100 km/h | 10.1 s |
| Standing km | |
| Foto: Z.Patera Auta5P, Automuseum Melle 2026 + D.Ch. |
|
|
