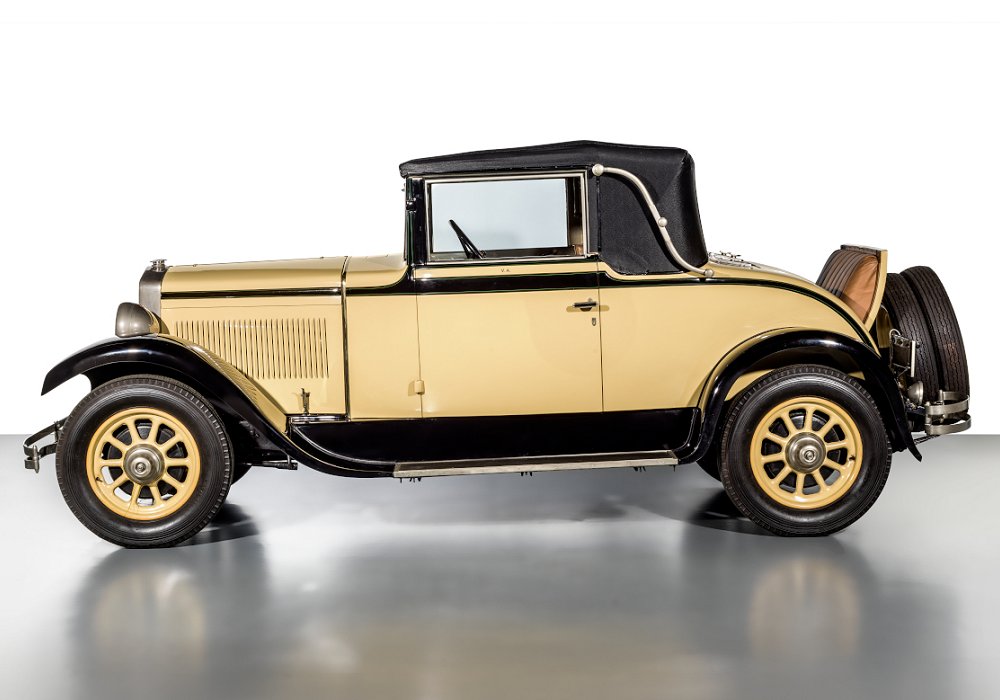

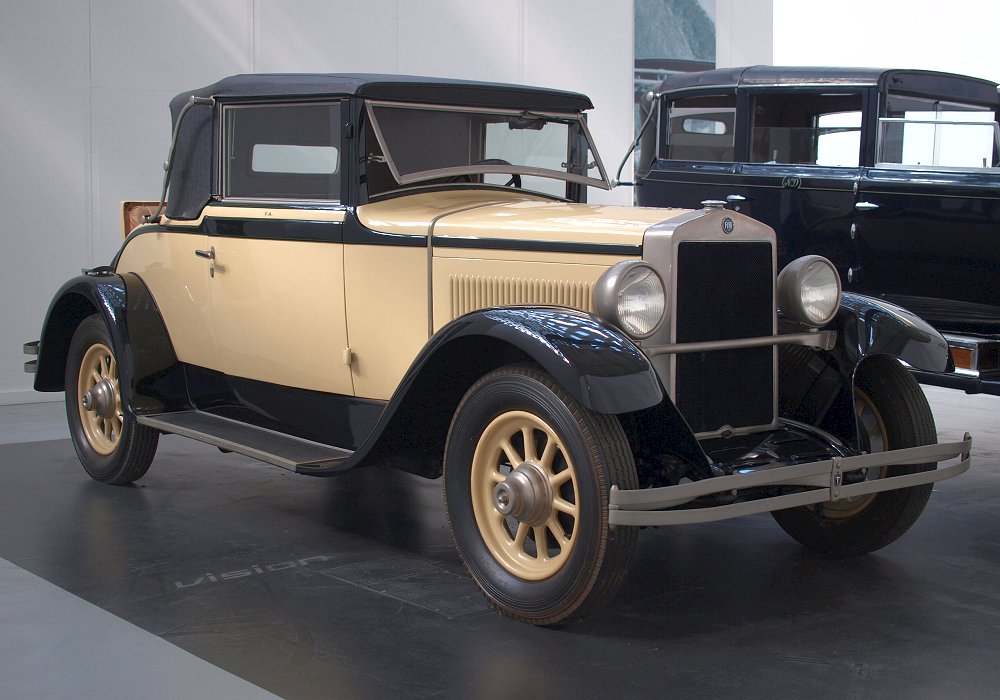

Fiat 520 Spider, 1928
| Manufacturer | Fiat |
| Model | 520 Spider |
| Year of production | 1928 |
| Start of production | 1927 |
| End of production | 1929 |
| Body type |
roadster |
| Number of doors | 2 |
| Number of seats | 2+2 |
| Engine position |
front |
| Drive wheel |
rear |
| Fuel |
petrol |
| Number of cylinders |
inline 6 |
| Cooling |
liquid |
| Capacity | 2244 ccm, 136.3 cu-in |
| Bore | 68.0 mm, 2.677 in |
| Stroke | 103.0 mm, 4.055 in |
| Compression ratio | |
| Valve Gear |
SV |
| Valves per cylinder | 2 |
| Fuel system |
carburator |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
34 / 46 / 45 at 3400 rpm |
| Max torque [Nm / ft-lb] |
|
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 2900 mm, 114.2 in |
| Front track | 1250 mm, 49.2 in |
| Rear track | 1250 mm, 49.2 in |
| Length | 4150 mm, 163.4 in |
| Width | 1660 mm, 65.4 in |
| Height | 1820 mm, 71.7 in |
| Weight | 1250 kg, 2756 lb |
| Maximum speed |
90 km/h, 56 mph |
| 0-100 km/h | |
| Standing km | |
