Fiat 501 S Spider, 1924
| Manufacturer | Fiat |
| Model | 501 S Spider |
| Year of production | 1924 |
| Start of production | 1922 |
| End of production | 1926 |
| Body type |
roadster |
| Number of doors | 0 |
| Number of seats | 2 |
| Engine position |
front |
| Drive wheel |
rear |
| Fuel |
petrol |
| Number of cylinders |
inline 4 |
| Cooling |
liquid |
| Capacity | 1460 ccm, 88.7 cu-in |
| Bore | 65.0 mm, 2.559 in |
| Stroke | 110.0 mm, 4.331 in |
| Compression ratio | |
| Valve Gear |
SV |
| Valves per cylinder | 2 |
| Fuel system |
carburator, 1 x Fiat |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
20 / 27 / 27 at 3000 rpm |
| Max torque [Nm / ft-lb] |
63 / 46 at 2000 rpm |
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 2650 mm, 104.3 in |
| Front track | 1250 mm, 49.2 in |
| Rear track | 1250 mm, 49.2 in |
| Length | 3850 mm, 151.6 in |
| Width | 1480 mm, 58.3 in |
| Height | |
| Weight | 850 kg, 1874 lb |
| Maximum speed |
100 km/h, 62 mph |
| 0-100 km/h | |
| Standing km | |

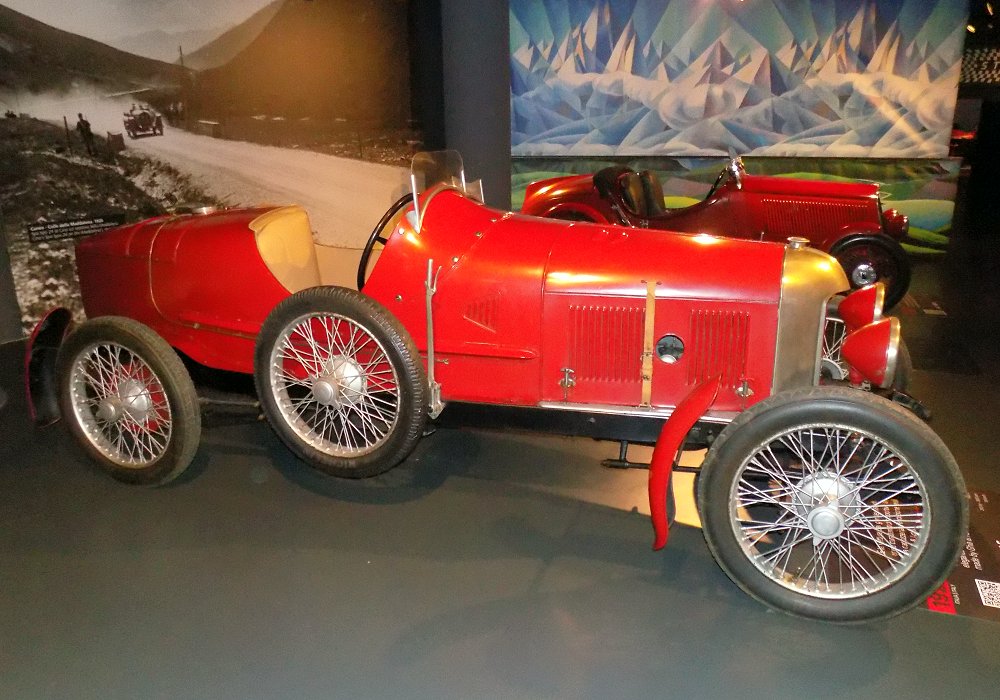

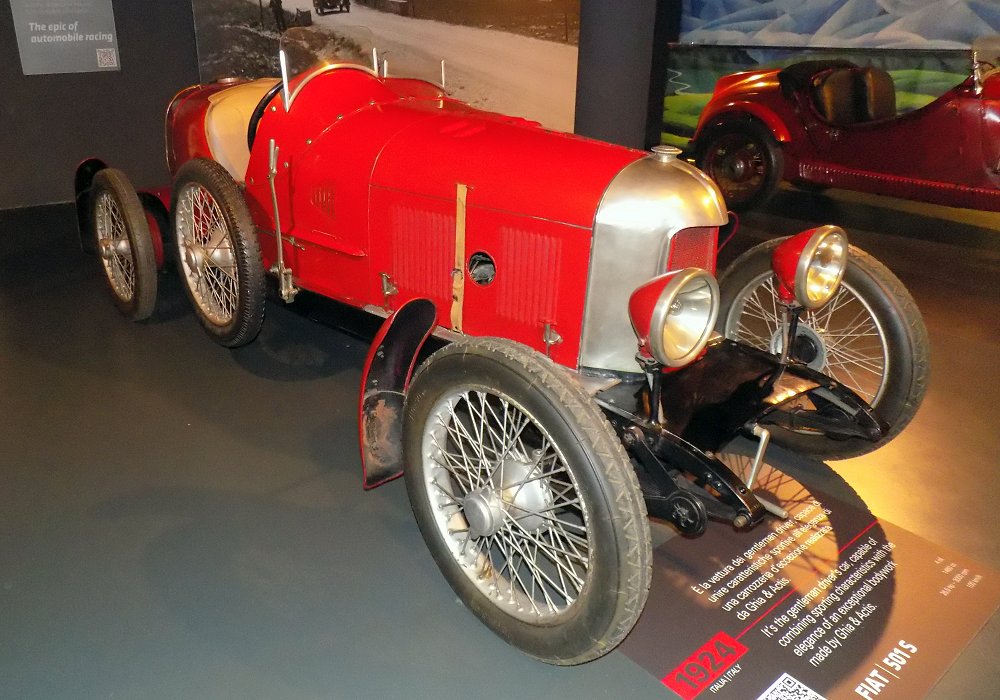

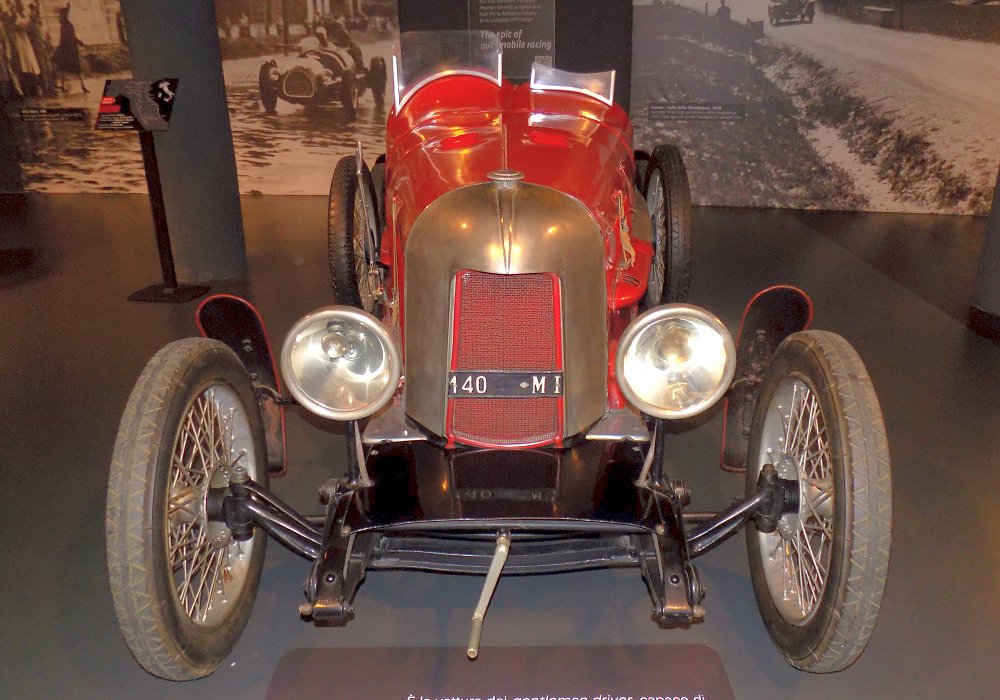

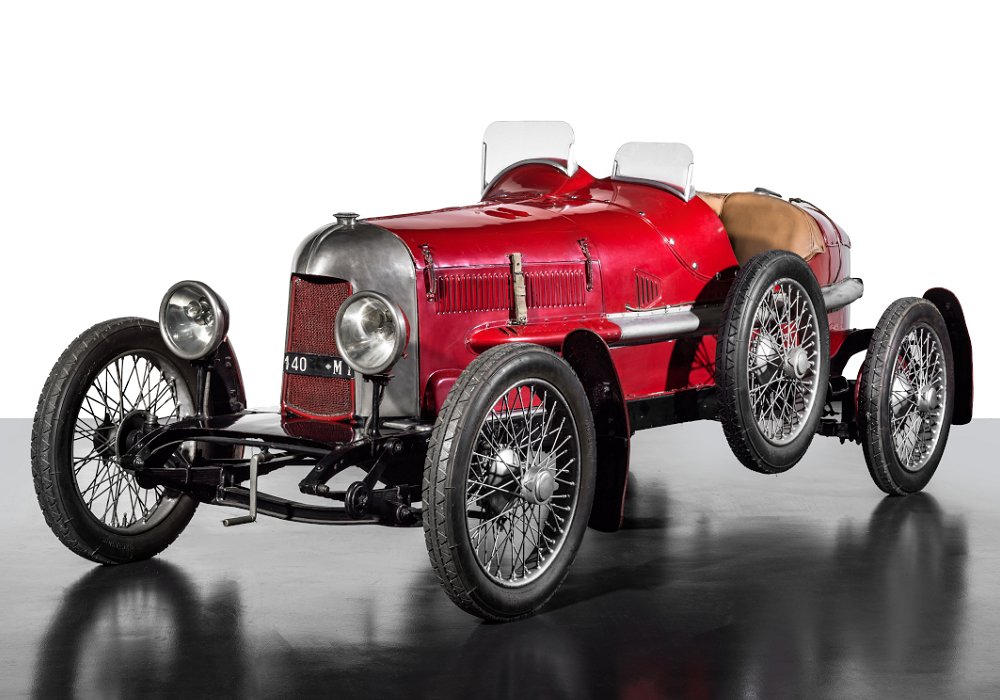

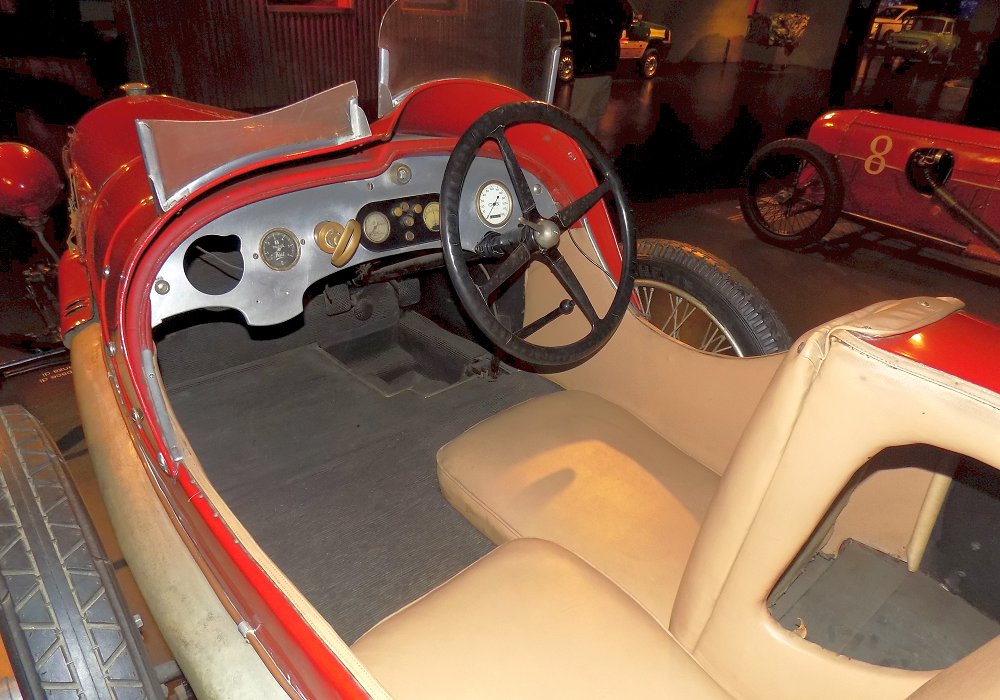

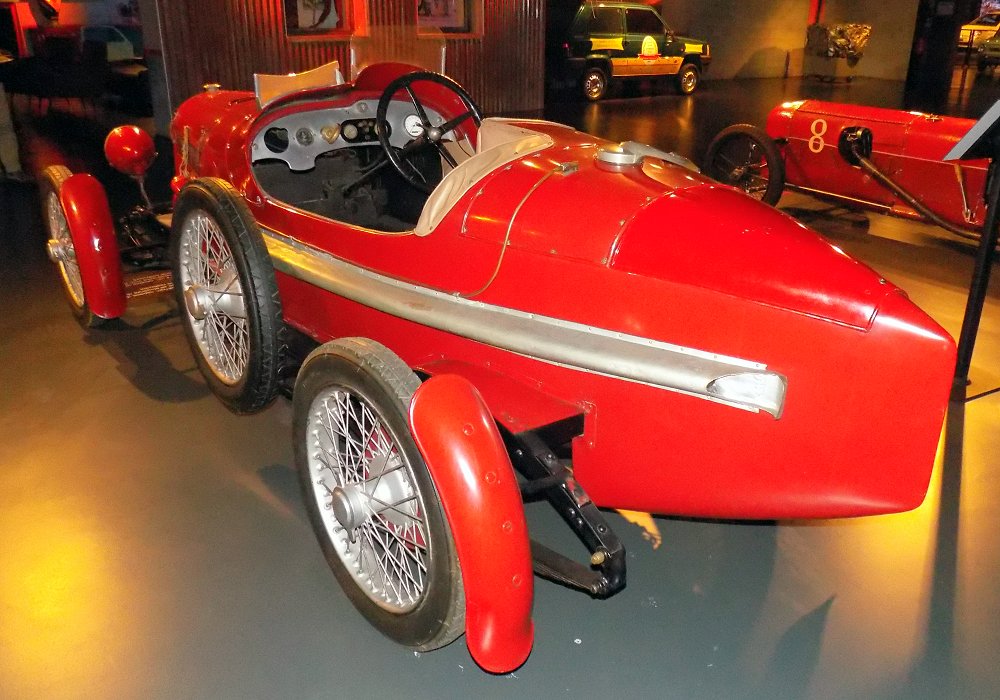

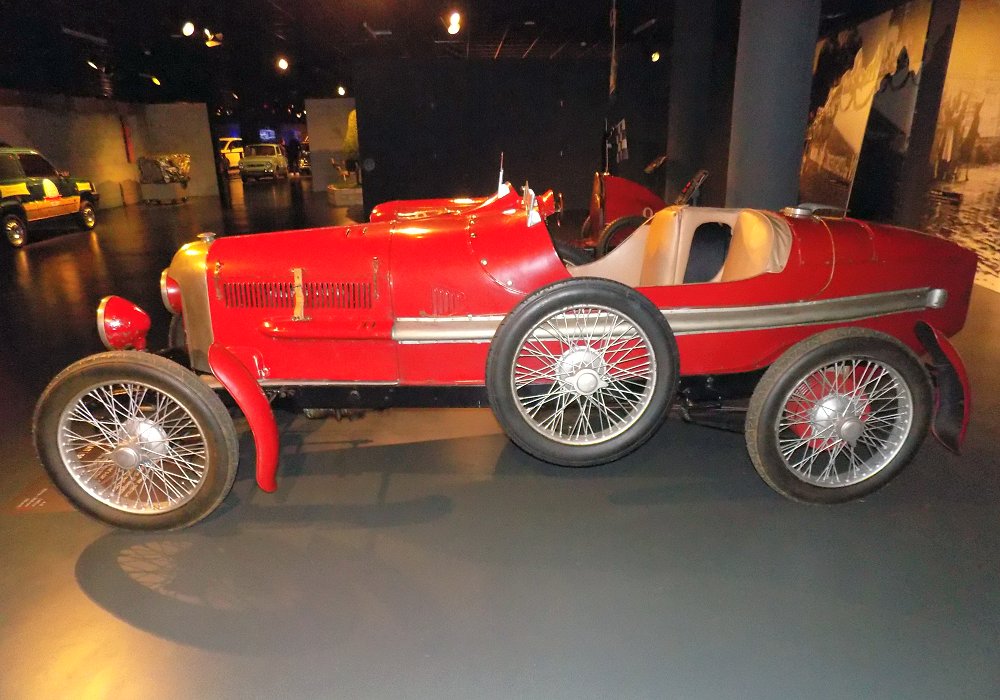

| Foto: Z.Patera Auta5P, Museo Auto Torino 2024 + Mauto |
|
|
