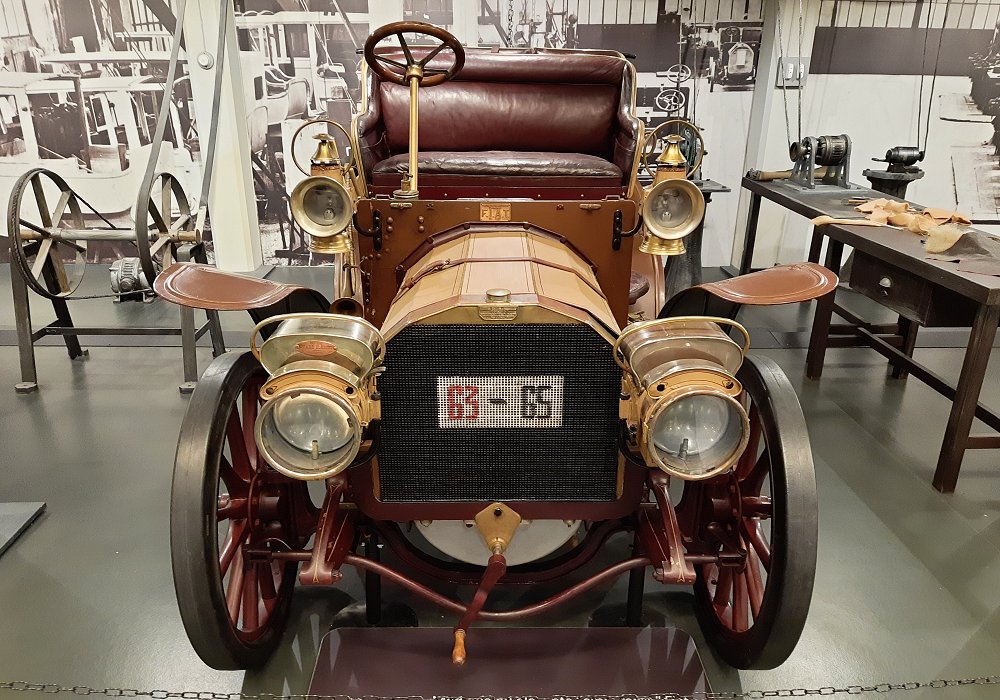

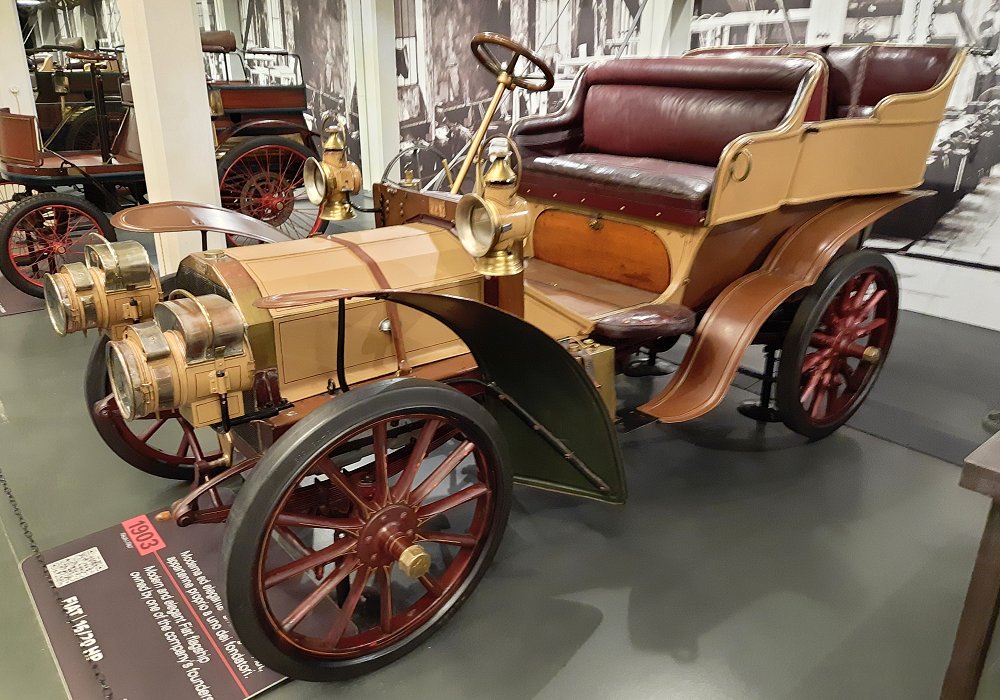

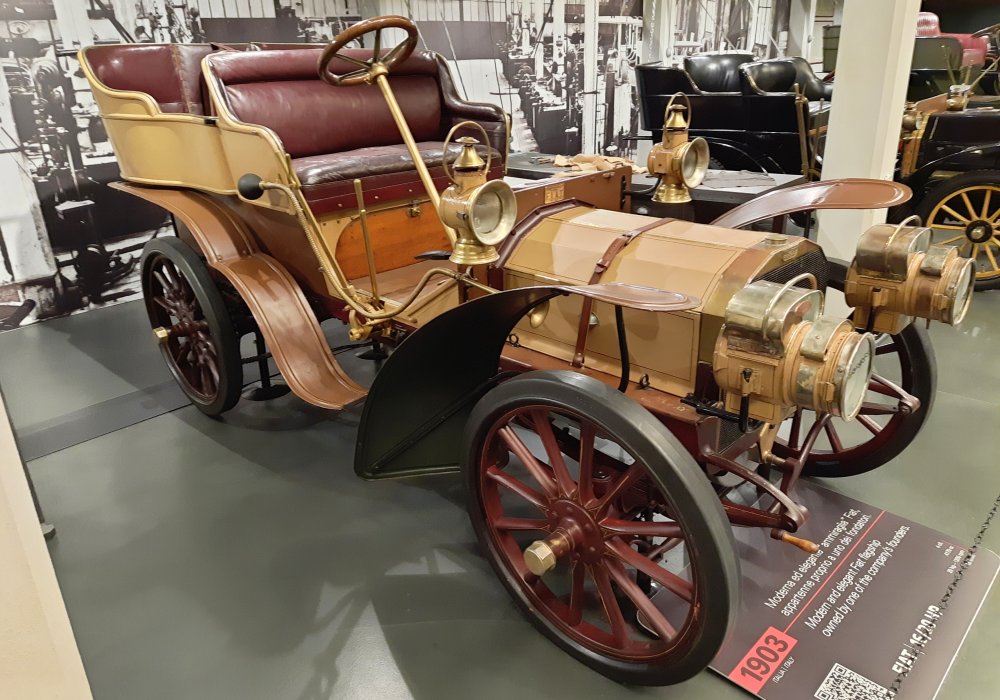

Fiat 16/20 HP, 1903
| Manufacturer | Fiat |
| Model | 16/20 HP |
| Year of production | 1903 |
| Start of production | 1903 |
| End of production | 1904 |
| Body type |
tonneau |
| Number of doors | 1 |
| Number of seats | 5 |
| Engine position |
front |
| Drive wheel |
rear |
| Fuel |
petrol |
| Number of cylinders |
inline 4 |
| Cooling |
liquid |
| Capacity | 4181 ccm, 253.9 cu-in |
| Bore | 110.0 mm, 4.331 in |
| Stroke | 110.0 mm, 4.331 in |
| Compression ratio | |
| Valve Gear |
SV |
| Valves per cylinder | 2 |
| Fuel system |
carburator |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
15 / 20 / 20 at 1200 rpm |
| Max torque [Nm / ft-lb] |
|
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 2120 mm, 83.5 in |
| Front track | 1350 mm, 53.1 in |
| Rear track | 1350 mm, 53.1 in |
| Length | 3250 mm, 128 in |
| Width | 1460 mm, 57.5 in |
| Height | |
| Weight | 1025 kg, 2260 lb |
| Maximum speed |
65 km/h, 40 mph |
| 0-100 km/h | |
| Standing km | |
| Foto: Z.Patera Auta5P, Museo Auto Torino 2024 |
|
|
