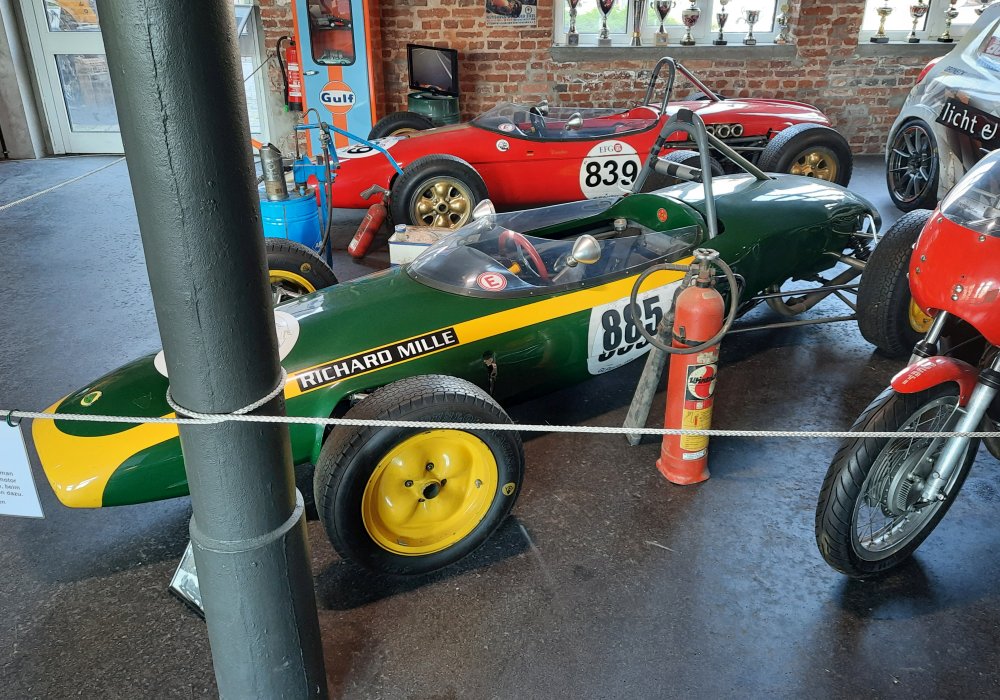

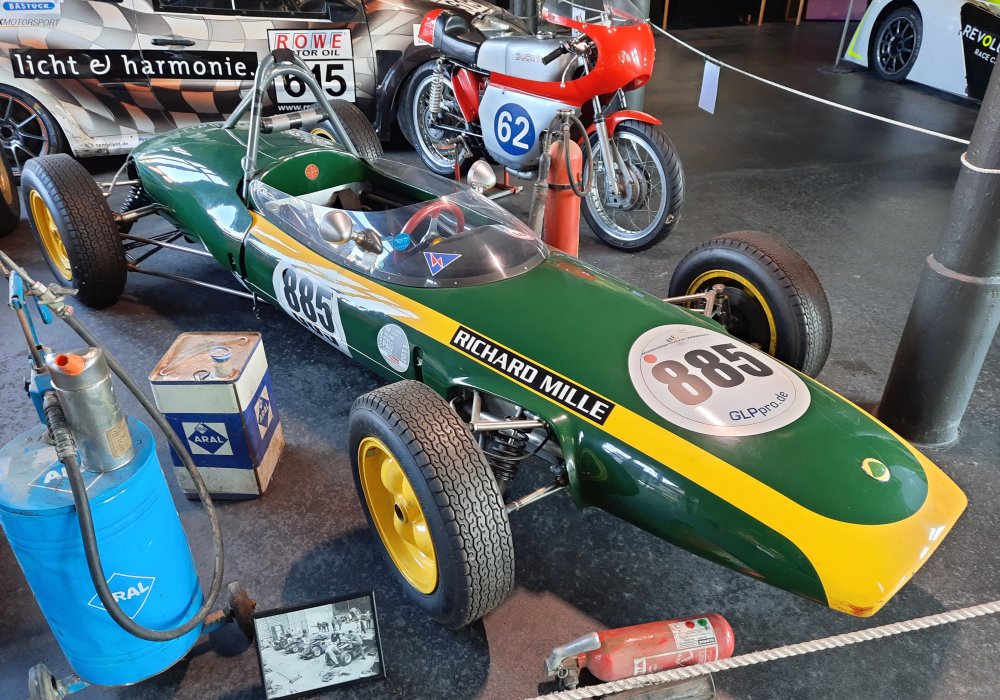

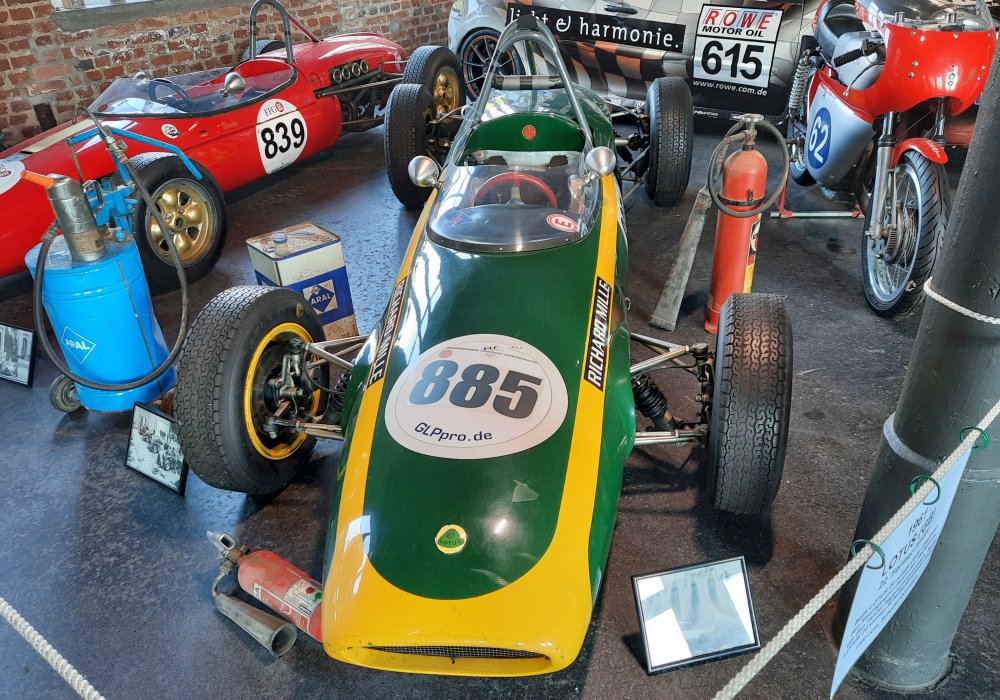

Lotus 22 Formula Junior, 1962
| Manufacturer | Lotus |
| Model | 22 Formula Junior |
| Year of production | 1962 |
| Start of production | 1962 |
| End of production | 1962 |
| Body type |
monopost |
| Number of doors | 0 |
| Number of seats | 1 |
| Engine position |
mid |
| Drive wheel |
rear |
| Fuel |
petrol |
| Number of cylinders |
inline 4 |
| Cooling |
liquid |
| Capacity | 1098 ccm, 66.7 cu-in |
| Bore | 81.0 mm, 3.189 in |
| Stroke | 53.3 mm, 2.098 in |
| Compression ratio | 12.0:1 |
| Valve Gear |
OHV |
| Valves per cylinder | 2 |
| Fuel system |
carburator, 2 x Weber |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
77 / 105 / 104 at 7800 rpm |
| Max torque [Nm / ft-lb] |
|
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 2284 mm, 89.9 in |
| Front track | 1307 mm, 51.5 in |
| Rear track | 1296 mm, 51 in |
| Length | 3528 mm, 138.9 in |
| Width | 1574 mm, 62 in |
| Height | 812 mm, 32 in |
| Weight | 400 kg, 882 lb |
| Maximum speed |
215 km/h, 134 mph |
| 0-100 km/h | |
| Standing km | |
| Foto: Z.Patera Auta5P, Automuseum Melle 2026 |
|
|
