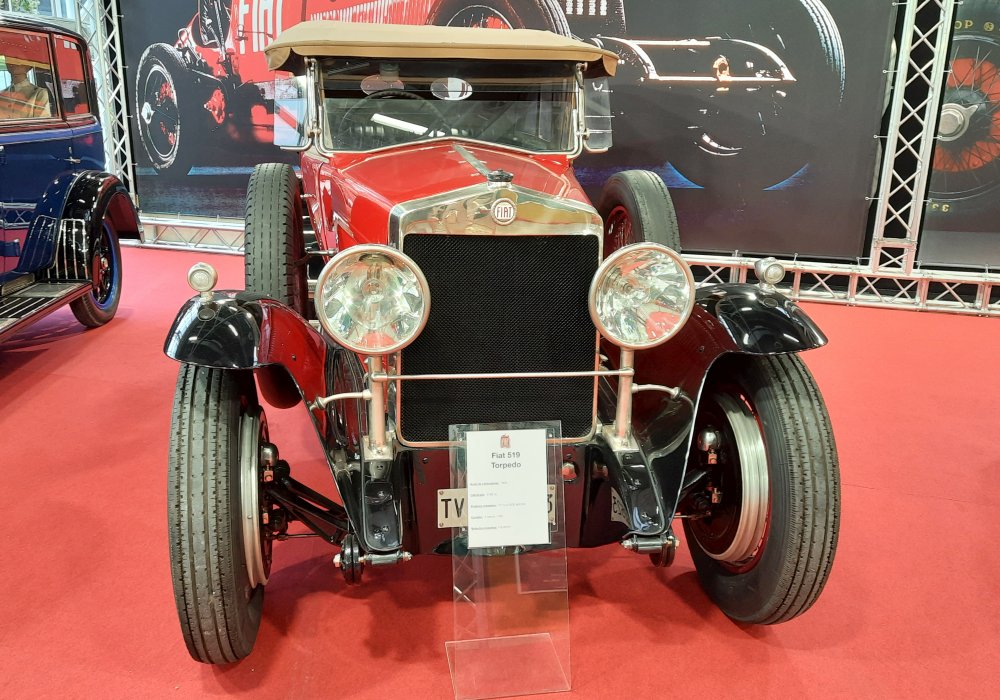

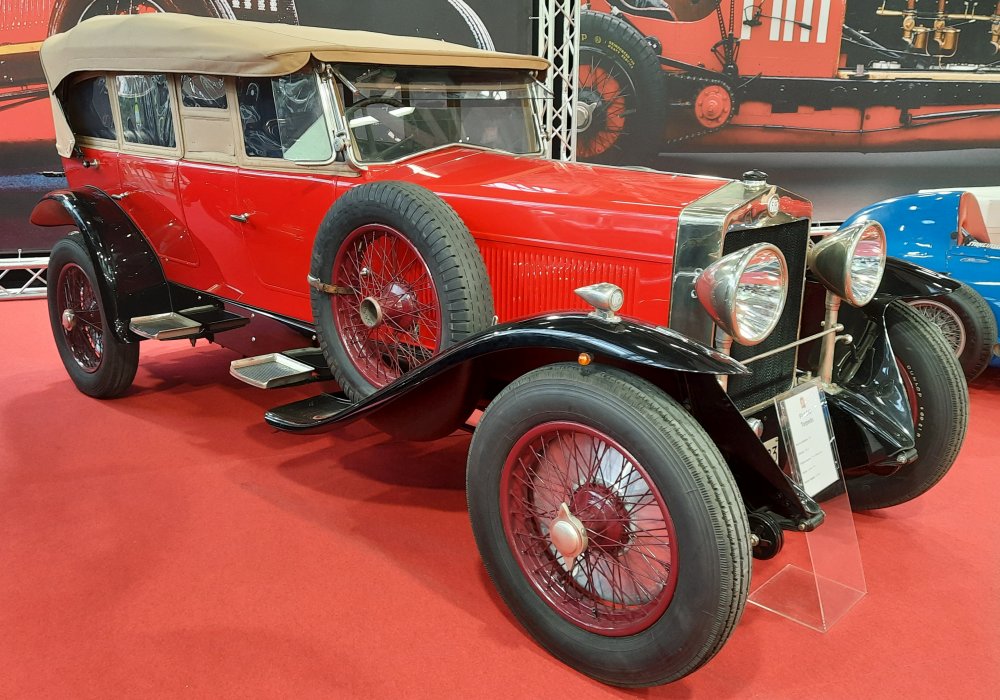

Fiat 519 Torpedo, 1924
| Manufacturer | Fiat |
| Model | 519 Torpedo |
| Year of production | 1924 |
| Start of production | 1922 |
| End of production | 1927 |
| Body type |
faeton |
| Number of doors | 4 |
| Number of seats | 5 |
| Engine position |
front |
| Drive wheel |
rear |
| Fuel |
petrol |
| Number of cylinders |
inline 6 |
| Cooling |
liquid |
| Capacity | 4766 ccm, 289.5 cu-in |
| Bore | 85.0 mm, 3.346 in |
| Stroke | 140.0 mm, 5.512 in |
| Compression ratio | |
| Valve Gear |
OHV |
| Valves per cylinder | 2 |
| Fuel system |
carburator, 1 x Fiat |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
57 / 77 / 76 at 2600 rpm |
| Max torque [Nm / ft-lb] |
|
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 3600 mm, 141.7 in |
| Front track | 1471 mm, 57.9 in |
| Rear track | 1471 mm, 57.9 in |
| Length | 4365 mm, 171.9 in |
| Width | 1760 mm, 69.3 in |
| Height | |
| Weight | 2250 kg, 4960 lb |
| Maximum speed |
115 km/h, 71 mph |
| 0-100 km/h | |
| Standing km | |
| Foto: Z.Patera Auta5P, Auto Moto Bologna 2024 |
|
|
