Citroën 2 CV AZ, 1958
| Manufacturer | Citroën |
| Model | 2 CV AZ |
| Year of production | 1958 |
| Start of production | 1955 |
| End of production | 1959 |
| Body type |
semi convertible |
| Number of doors | 4 |
| Number of seats | 4 |
| Engine position |
front |
| Drive wheel |
front |
| Fuel |
petrol |
| Number of cylinders |
B2 |
| Cooling |
air |
| Capacity | 425 ccm, 25.8 cu-in |
| Bore | 66.0 mm, 2.598 in |
| Stroke | 62.0 mm, 2.441 in |
| Compression ratio | 7.0:1 |
| Valve Gear |
OHV |
| Valves per cylinder | 2 |
| Fuel system |
carburator, 1 x Solex |
| Aspiration |
normal |
| Max power [kW / PS / hp] |
9 / 12 / 12 at 4200 rpm |
| Max torque [Nm / ft-lb] |
23 / 17 at 2500 rpm |
| Total power (hybrid) | |
| Total torque (hybrid) |
|
| Gearbox | M4 |
| Gearbox (option) | |
| Wheelbase | 2400 mm, 94.5 in |
| Front track | 1260 mm, 49.6 in |
| Rear track | 1260 mm, 49.6 in |
| Length | 3780 mm, 148.8 in |
| Width | 1480 mm, 58.3 in |
| Height | 1600 mm, 63 in |
| Weight | 505 kg, 1113 lb |
| Maximum speed |
78 km/h, 48 mph |
| 0-100 km/h | |
| Standing km | |

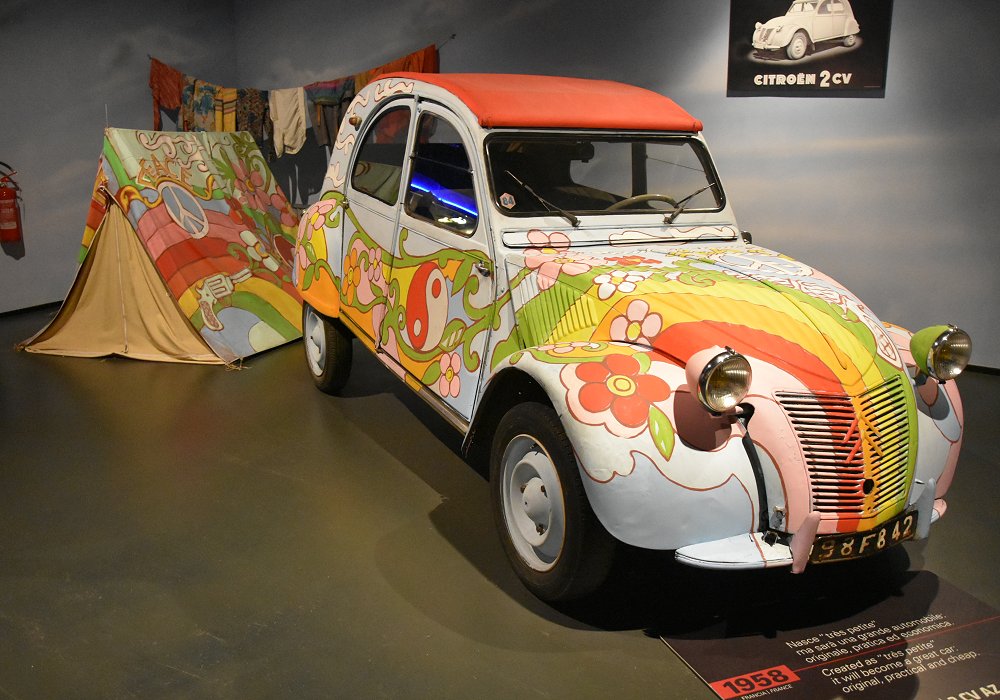

| Foto: J.Fiala, Museo Auto Torino 2024 |
|
|
